Professional Drones & UAV Systems
Autel Alpha
B2B sourcing of the Autel Alpha industrial UAV platform for inspection, surveying and fleet procurement requests, with package and documentation confirmed during RFQ review.
IBT Services B.V. sources the Autel Alpha for B2B customers that need industrial UAV procurement with clear aircraft, payload, battery and documentation requirements.
This page is intended for sourcing and RFQ preparation. It is not a live stock page and does not imply immediate availability, distributor status or fixed pricing.
Technical data
Key specifications
| Parameter | Condition | Specified value |
|---|---|---|
| Aircraft empty weight | Smart battery and propellers included; gimbal excluded | 5535 g |
| Aircraft weight | Smart battery, gimbal and propellers included | 6480 g |
| Maximum take-off mass | — | 8400 g |
| Fuselage dimensions | Unfolded, including propellers | 1205 x 980 x 278 mm |
| Fuselage dimensions | Folded, excluding propellers | 455 x 263 x 248 mm |
| Diagonal wheelbase | — | 814 mm |
| Maximum service ceiling above sea level | — | 4500 m |
| Maximum flight altitude | App altitude limit | 800 m |
| Maximum flight time | Windless, speed 10.5 m/s | 40 min |
| Maximum hovering time | Windless | 38 min |
| Maximum range | Propeller-dependent | 30 km with carbon fiber propeller; 27.5 km with injection molded propeller |
| Wind speed resistance | Takeoff and landing phase / cruise phase | 10.7 m/s / 12 m/s |
| Operating temperature | — | -20 to 50 C |
| IP rating | — | IP55 |
| GNSS | — | GPS + Galileo + BeiDou + GLONASS |
| Image transmission distance | Without interference and blocking; region-dependent | FCC 15 km; CE 8 km |
| Visual sensing system | Forward, backward, sideward, upward and downward sensing ranges vary by direction | Directional visual sensing with listed ranges from 0.2 m to 45 m depending on direction |
| Millimeter-wave radar sensing | Region and aircraft version dependent | 60 GHz and 24 GHz radar specifications listed by Autel; confirm exact aircraft version against supplier documentation |
| DG-L35T gimbal | Payload listed on official Autel Alpha page | 144.7 x 133.3 x 158.4 mm, 920 g, IP55, 3-axis mechanical gimbal |
| Zoom camera | DG-L35T gimbal | 1/1.8-inch CMOS, 8 MP, 4K video, 35x optical zoom and up to 560x hybrid zoom |
| Wide angle camera | DG-L35T gimbal | 1/2-inch CMOS, 48 MP, 24 mm equivalent focal length, f/2.8 |
| Infrared thermal imaging cameras | DG-L35T gimbal | Dual 640 x 512 VOx microbolometer cameras with 13 mm and 45 mm focal lengths |
| Laser rangefinder | DG-L35T gimbal | 905 nm wavelength, 10-2000 m measuring range |
| Smart battery | — | LiPo 6S, 10000 mAh, 237 Wh, 23.7 V, 995 g |
Aircraft empty weight
5535 g
Smart battery and propellers included; gimbal excluded
Aircraft weight
6480 g
Smart battery, gimbal and propellers included
Maximum take-off mass
8400 g
Fuselage dimensions
1205 x 980 x 278 mm
Unfolded, including propellers
Fuselage dimensions
455 x 263 x 248 mm
Folded, excluding propellers
Diagonal wheelbase
814 mm
Maximum service ceiling above sea level
4500 m
Maximum flight altitude
800 m
App altitude limit
Maximum flight time
40 min
Windless, speed 10.5 m/s
Maximum hovering time
38 min
Windless
Maximum range
30 km with carbon fiber propeller; 27.5 km with injection molded propeller
Propeller-dependent
Wind speed resistance
10.7 m/s / 12 m/s
Takeoff and landing phase / cruise phase
Operating temperature
-20 to 50 C
IP rating
IP55
GNSS
GPS + Galileo + BeiDou + GLONASS
Image transmission distance
FCC 15 km; CE 8 km
Without interference and blocking; region-dependent
Visual sensing system
Directional visual sensing with listed ranges from 0.2 m to 45 m depending on direction
Forward, backward, sideward, upward and downward sensing ranges vary by direction
Millimeter-wave radar sensing
60 GHz and 24 GHz radar specifications listed by Autel; confirm exact aircraft version against supplier documentation
Region and aircraft version dependent
DG-L35T gimbal
144.7 x 133.3 x 158.4 mm, 920 g, IP55, 3-axis mechanical gimbal
Payload listed on official Autel Alpha page
Zoom camera
1/1.8-inch CMOS, 8 MP, 4K video, 35x optical zoom and up to 560x hybrid zoom
DG-L35T gimbal
Wide angle camera
1/2-inch CMOS, 48 MP, 24 mm equivalent focal length, f/2.8
DG-L35T gimbal
Infrared thermal imaging cameras
Dual 640 x 512 VOx microbolometer cameras with 13 mm and 45 mm focal lengths
DG-L35T gimbal
Laser rangefinder
905 nm wavelength, 10-2000 m measuring range
DG-L35T gimbal
Smart battery
LiPo 6S, 10000 mAh, 237 Wh, 23.7 V, 995 g
Specification summary is based on official manufacturer specifications. Checked and updated in 2026.
Compatibility
Supported ecosystem
Items listed below are based on the supplied product specification.
- DG-L35T Gimbal
- Autel Smart Controller V3
- Autel Alpha Smart Battery
- Loudspeaker And Spotlight Combo
- Tracer Air Radio Detection Device
B2B supply context

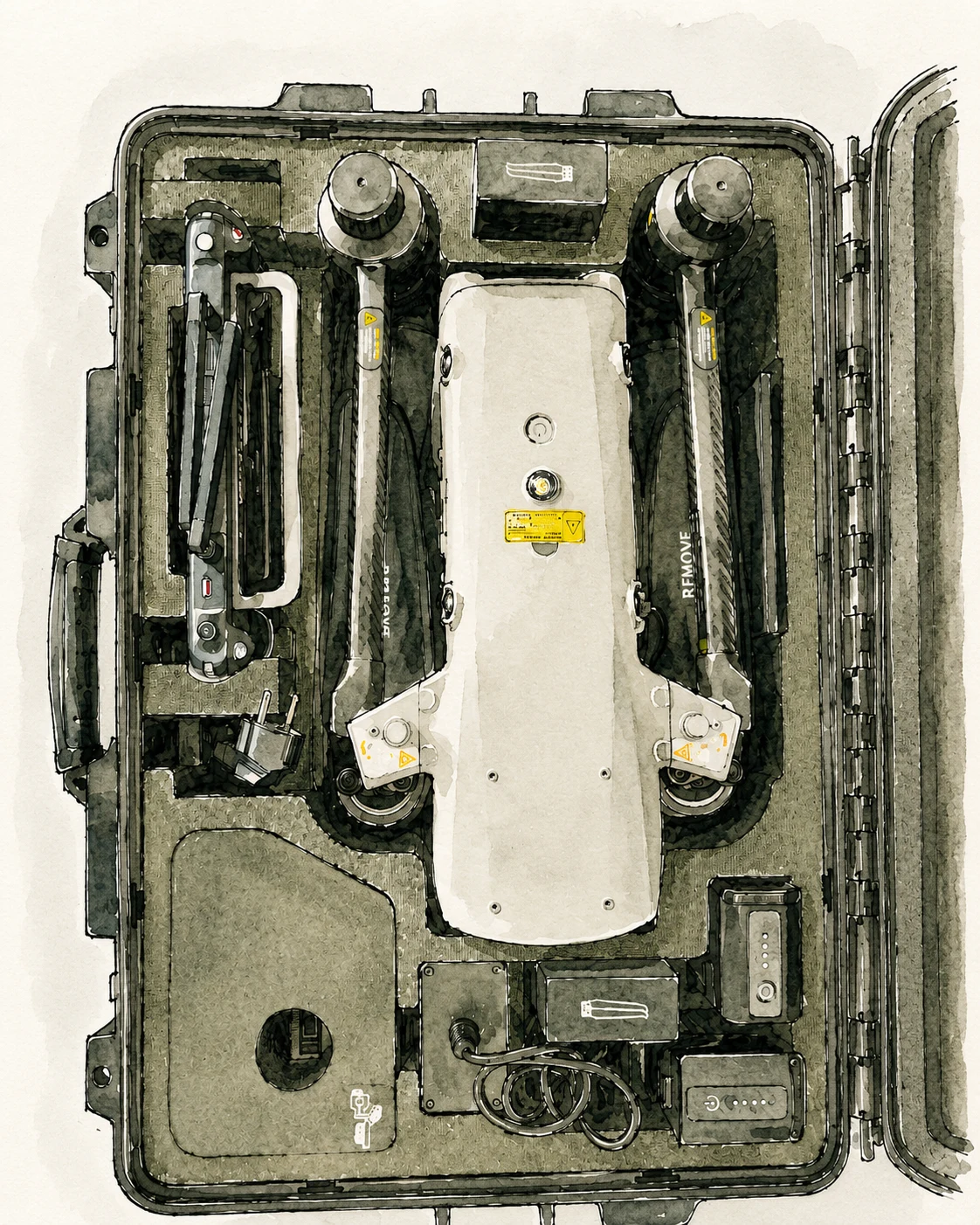

Multi-unit supply and shipment illustration
Example delivery and packing visuals. They do not indicate stock availability; availability, pricing and lead time are confirmed after RFQ review.
Frequently asked questions
Can IBT source the Autel Alpha in volume?
IBT can review sourcing options for volume requests. Provide quantity, destination country, required payload package, battery and accessory requirements, and documentation needs in your RFQ.
Is this page a live stock listing?
No. This is a B2B sourcing page. Availability and pricing are confirmed after RFQ review.
Which configuration details should be included?
Include the aircraft package, DG-L35T or other payload requirement, controller, battery quantity, charging accessories, destination country, market version and documentation requirements.
Are all transmission values universal?
No. Autel lists region-dependent frequency and transmission values. Confirm the exact market version and supplier documentation before purchase order.
Submit an RFQ for Autel Alpha
Send a structured request: we check availability and pricing with our verified suppliers, and if the request is workable, we supply the product.
